XCMG 135hp Motor Grader GR135 Road Construction Machinery With Cummins Engine
Product Description
1. The GR135 adopts a Dongfeng Cummins 6BT5.9-C130-II turbocharged diesel engine, which has a large output torque and power reserve factor and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. The drive axle is a dedicated XCMG axle.
4. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
6. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
Specification
| Basic specification |
| Engine model | 6BT5.9 |
| Rated power/speed | 100/2200kw/rpm |
| Dimension(LxWxH) | 8015×2380×3050mm |
| Operating weight(Standard) | 11000kg |
| Performance specification |
| Travelling speed ,forward | 5,8,13,20,30,42km/h |
| Travelling speed ,reverse | 5,13,30km/h |
| Tractive force(f=0.75) | 61.3KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 300kPa |
| Working hydraulic pressure | 16MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification |
| Max. steering angle of front wheels | ±49° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 16 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 6.6m |
| Biade |
| Maximum lift above ground | 410mm |
| Maximum depth of cutting | 535mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3710×610mm |

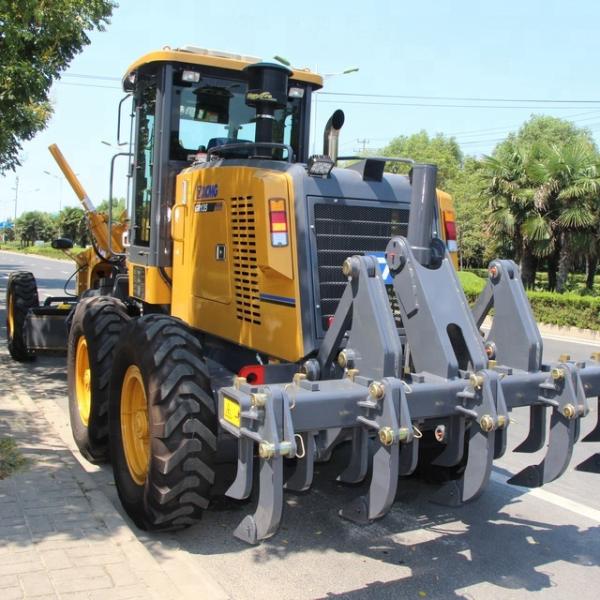

Product picture
